Hollyland Pyro H Wireless HDMI Video Transmission System, Auto Dual-Band Hopping, 4K30/1080p60 1300ft Los Range 60ms Latency, Smart Channel Scan, Up to 4 Receiver, UVC Live Stream (1TX+1RX)
Transmission System
Hollyland Pyro H Wireless HDMI Video Transmission System, Auto Dual-Band Hopping, 4K30/1080p60 1300ft Los Range 60ms Latency, Smart Channel Scan, Up to 4 Receiver, UVC Live Stream (1TX+1RX)
Original price was: ₹35,990.00.₹29,990.00Current price is: ₹29,990.00.

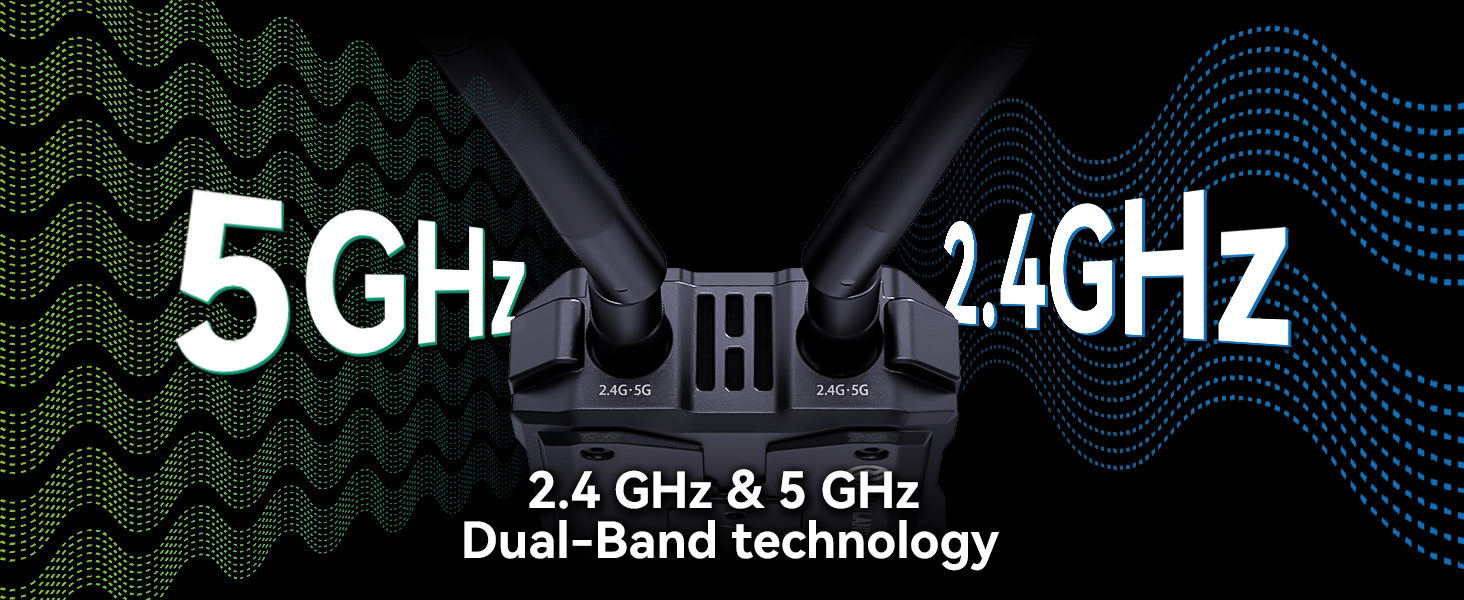

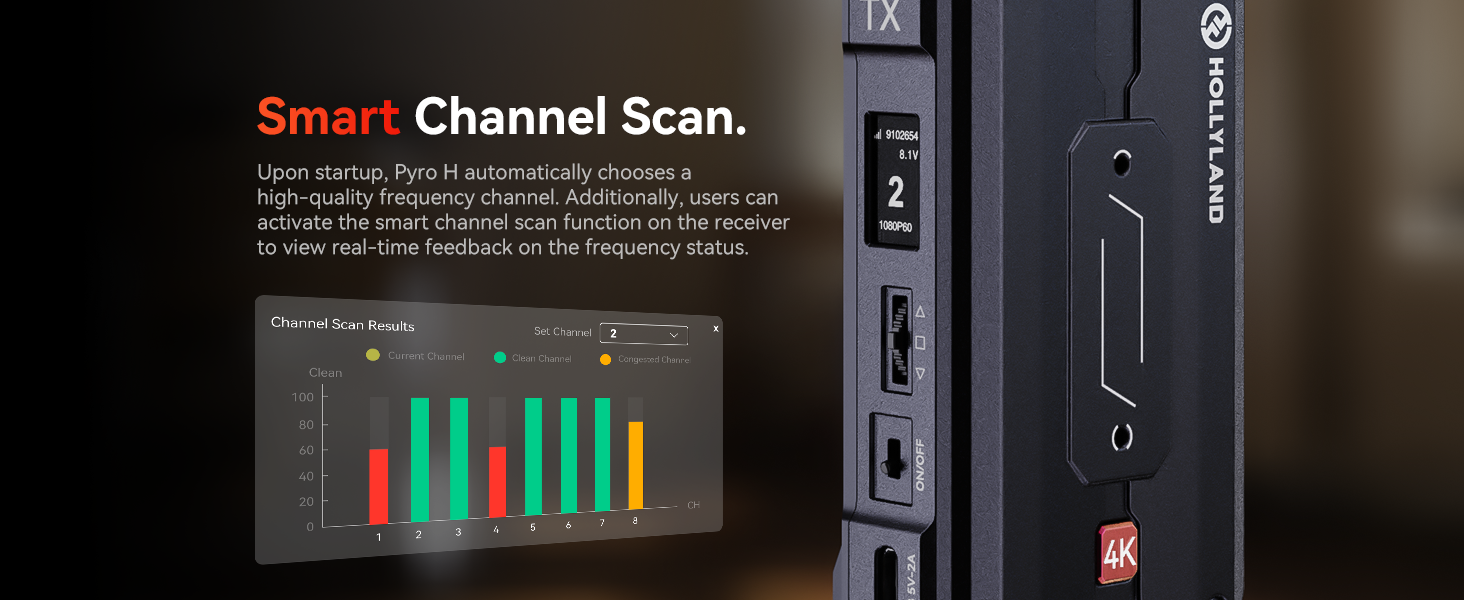

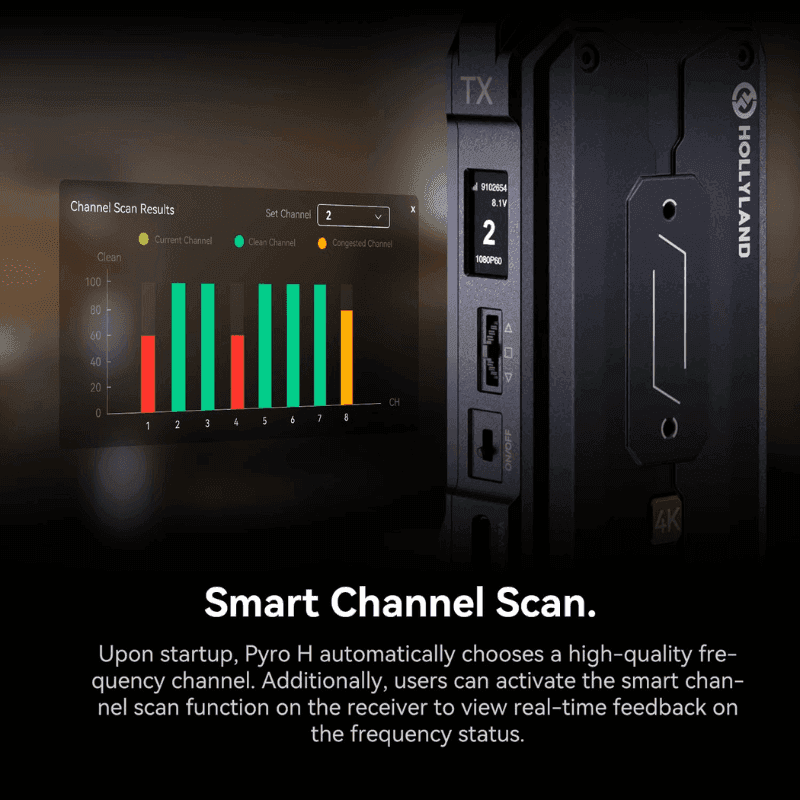

- Pyro H supports video input/output formats up to 3840×2160@24/25/30fps resolution via HDMI port. Featuring Smart Channel Scan, Pyro H automatically selects the optimal frequency channel upon startup, ensuring seamless operation across 2.4 GHz & 5 GHz bands.Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status.

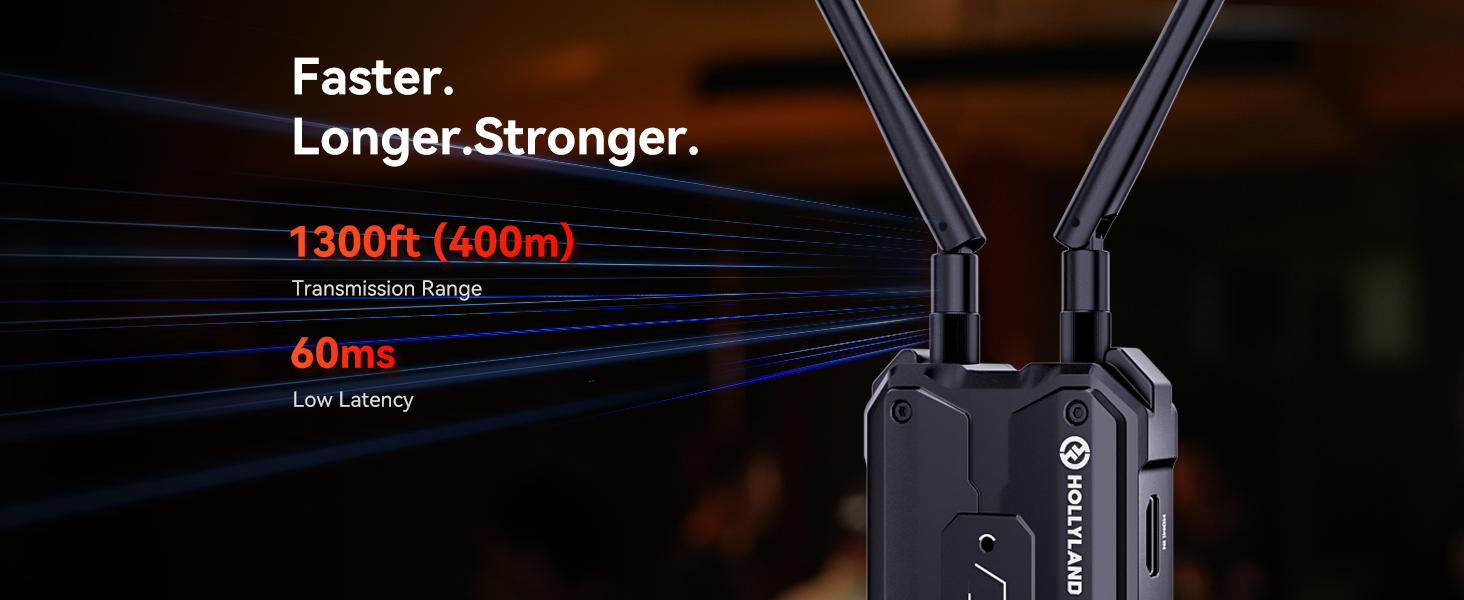

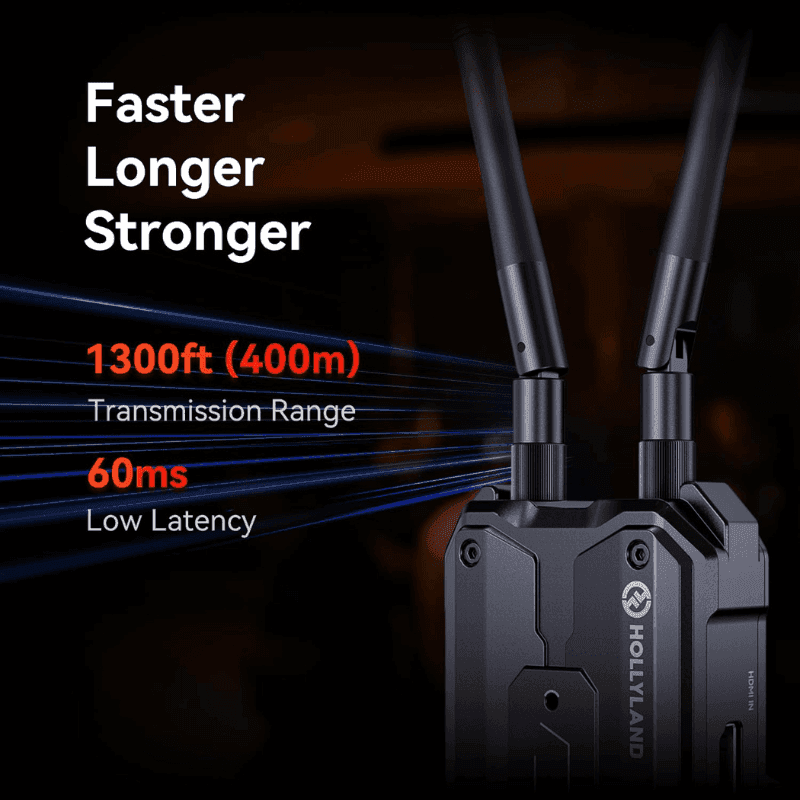

- Pyro H sets a new benchmark with an impressive transmission range of up to 1,300ft (400m) and ultra-low latency of just 60ms. Designed for the demands of professional filming and live broadcasting, this ensures a flawless viewing experience, allowing for real-time direction and feedback, even in the most challenging environments.

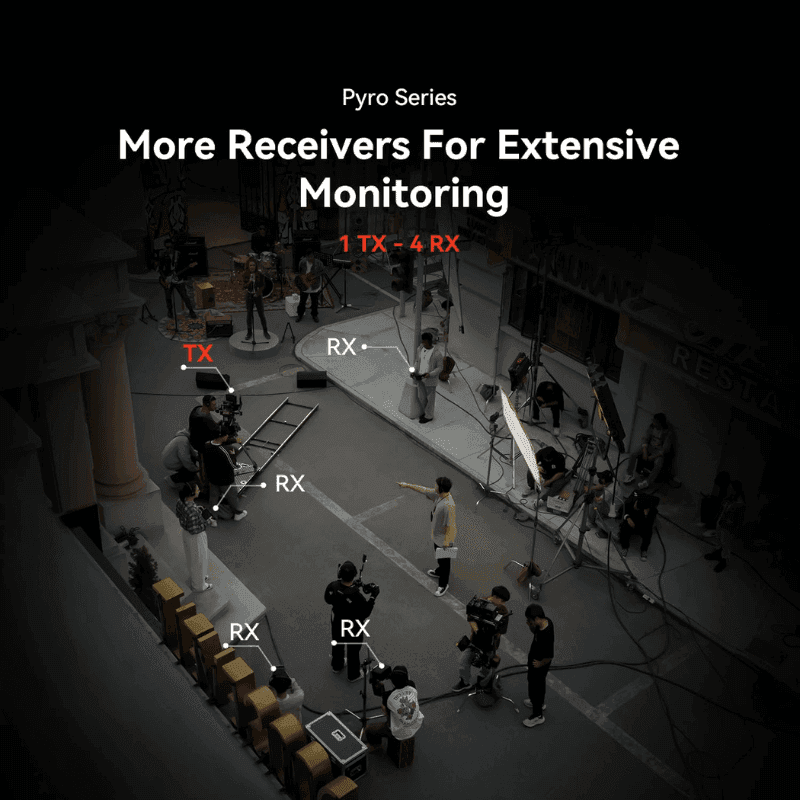

- Pyro H can transmit to up to 4 different receivers, allowing all crews to monitor. Coupled with dedicated Hollyview APP support, teams can effortlessly monitor feeds in real time, making adjustments on the fly for unparalleled efficiency and teamwork in any filming scenario.

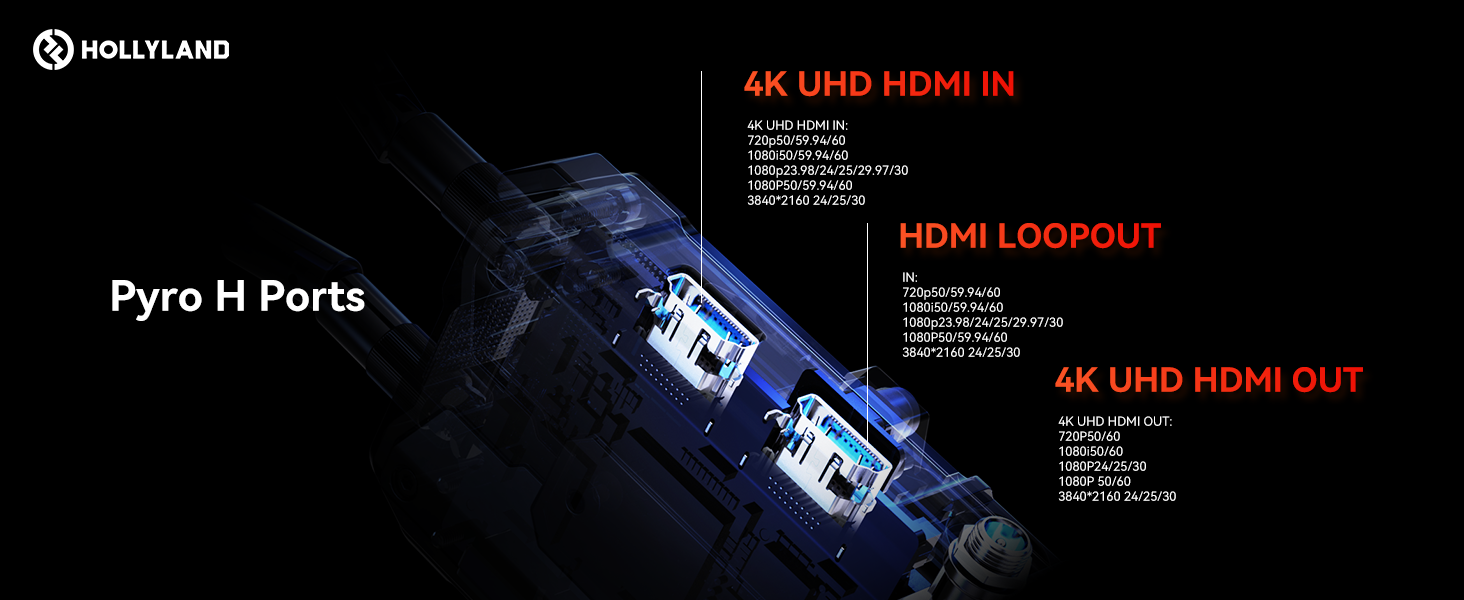

- Pyro H is equipped with HDMI input/output and Loopout, enabling seamless connection to cameras and camera field monitor for instant feedback. With USB Video Class (UVC) support, it offers plug-and-play live streaming directly to your computer, simplifying the process of broadcasting live content to global audiences.

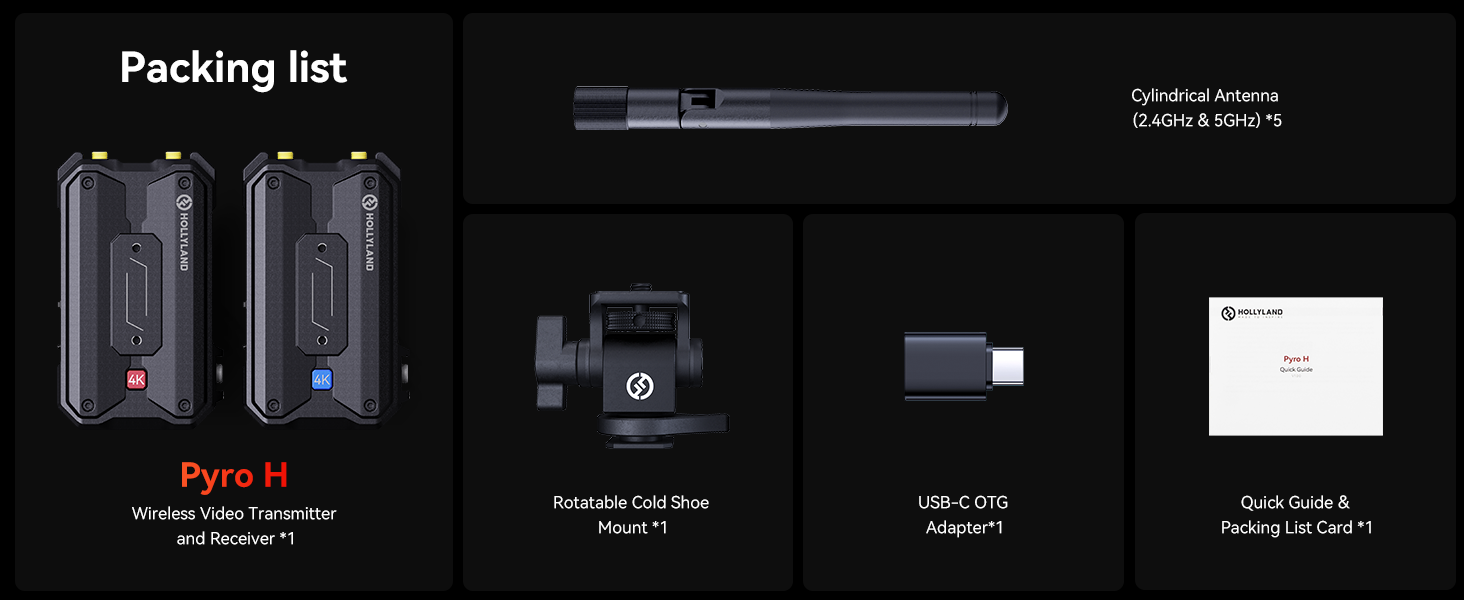

- Each Pyro H kit is meticulously equipped for immediate use, including Pyro H Wireless Video Transmitter and Receiver *1, Dual-band Cylindrical Antennas *5 for optimal signal strength, Rotatable Cold Shoe *1 Mount for versatile mounting options, USB-C OTG Adapter *1 for easy connectivity, and a Quick Guide to get you started right away.

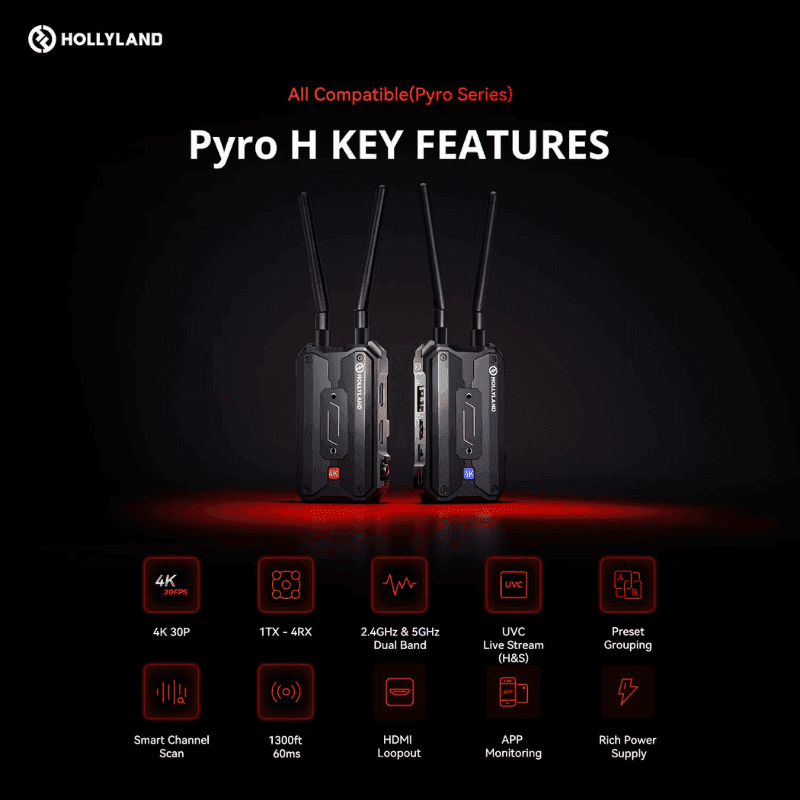

- 1 Transmitter & 4 Receivers (1TX & 1RX in box)
- 1,300ft (400m) LOS Range
- 06s Low Latency
- 4GHz & 5GHz Dual Band
- 4K30 Transmission
- HDMI Loopout
- UVC Streaming
- Smart Channel Scan
Estimated delivery dates: November 3, 2025 - November 5, 2025
| Weight | .192 kg |
|---|---|
| Dimensions | 10.9 × 6.23 × 3.34 cm |
| Brand | Hollyland |
| Distributor Name | Narayana Electronics |
Brand
Hollyland
Specifications
| Item | Parameters |
| Port | DC Input: 2.0mm Core Socket HDMI Input: HDMI 1.4b HDMI Loopout: HDMI 1.4b USB-C: USB 2.0 OTG Antenna: SMA Male |

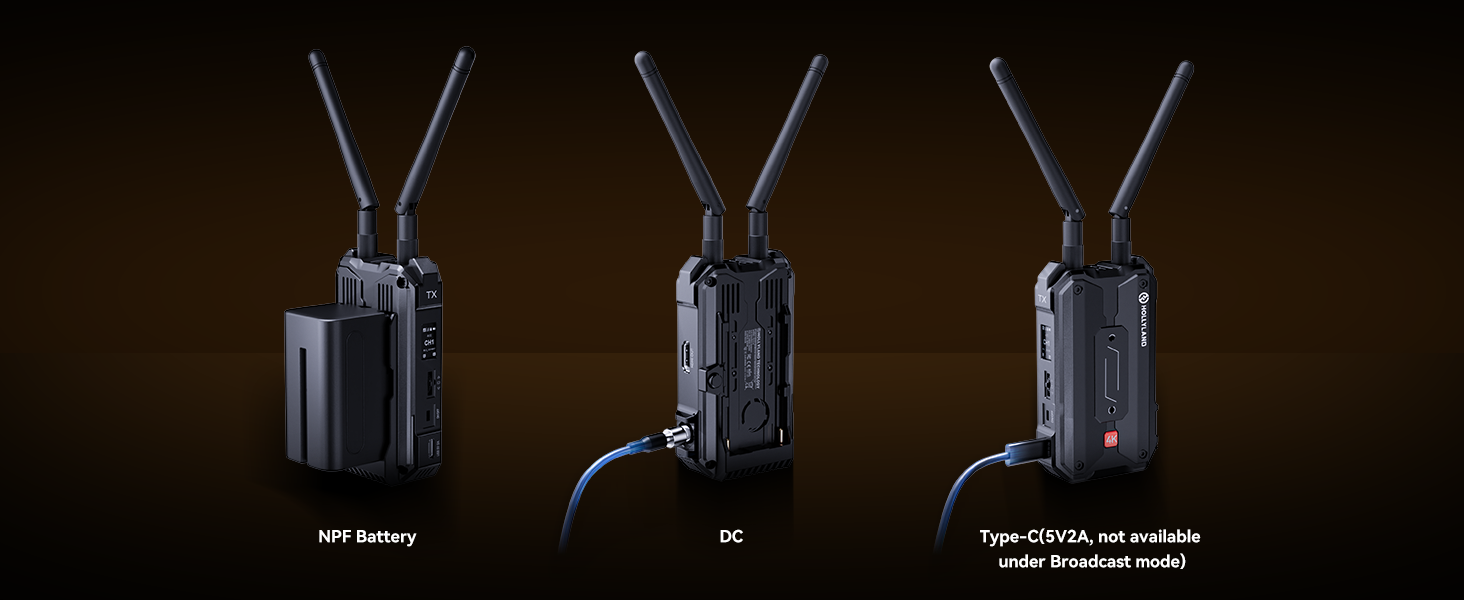

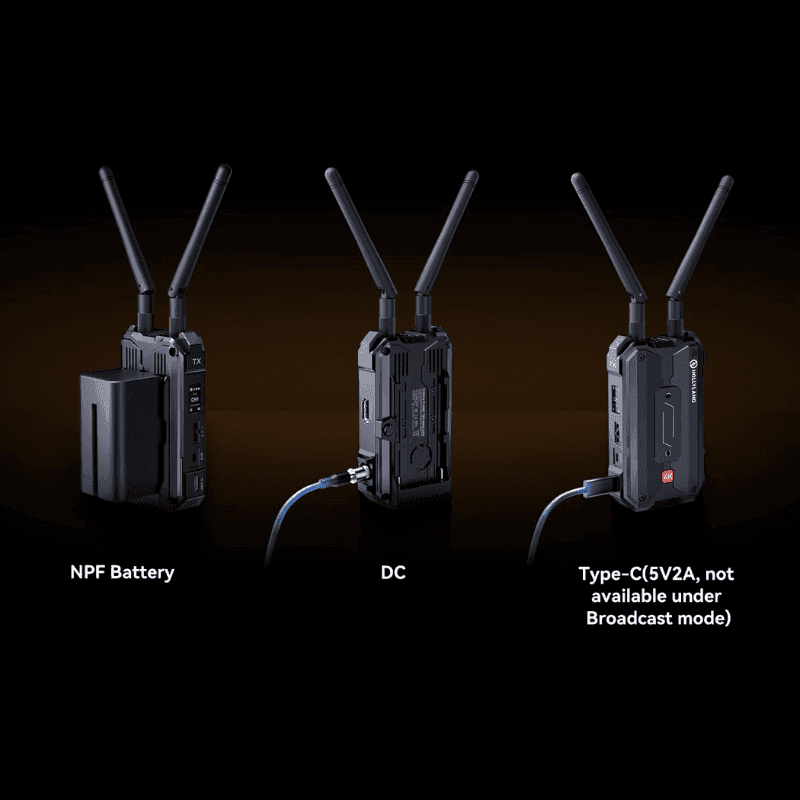

| Power Supply | USB-C: 5V/2A (not supported in Broadcast mode) Battery Voltage Range: 6.8 – 8.4V DC Voltage Range: 6 – 16V |
| Power Consumption | < 7W |
| Net Weight | 192g |
| Dimensions | L × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.) |

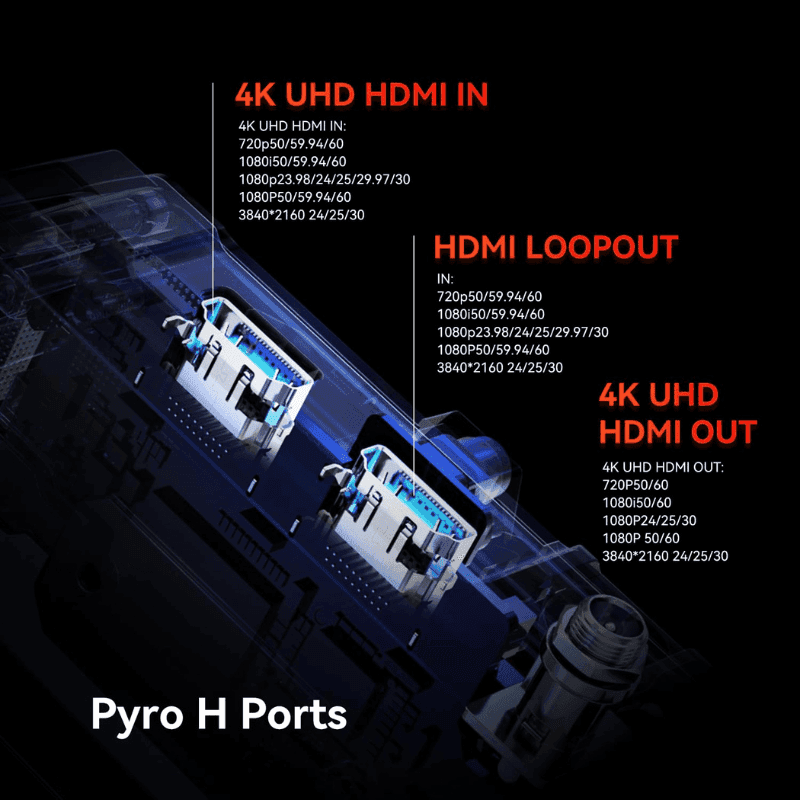

| Input/Output Format | HDMI 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.97/30 1080p50/59.94/60 4K30/25/24 HDMI Loopout 720p50/60 1080i50/60 1080p24/25/30 1080p50/60 4K30/25/24 |
| Operating Frequency | 5 GHz Frequency Band 5.150 – 5.250 GHz 5.250 – 5.350 GHz 5.470 – 5.725 GHz 5.725 – 5.850 GHz2.4 GHz Frequency Band 2.412 – 2.484 GHz |
| Transmit Power | < 23 dBm |
| Receiver Sensitivity | / |
| Latency | 0.06s (test data when 1080p60 signals are transmitted in a laboratory) |
| Range | 1,300ft (400m)(test data in an open, interference-free environment) |
| Bandwidth | 20 MHz (Broadcast: 40 MHz) |
Receiver
| Item | Parameters |
| Port | DC Input: 2.0mm Core Socket HDMI Input: HDMI 1.4b HDMI Loopout: HDMI 1.4b USB-C: USB 2.0 OTG Antenna: SMA Male |
| Power Supply | USB-C: 5V/2A (not supported in Broadcast mode) Battery Voltage Range: 6.8 – 8.4V DC Voltage Range: 6 – 16V |
| Power Consumption | < 4W |
| Net Weight | 192g |
| Dimensions | L × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.) |
| Input/Output Format | HDMI 720p50/60 1080i50/60 1080p24/25/30 1080p50/60 4K30/25/24 |
| Operating Frequency | 5 GHz Frequency Band 5.150 – 5.250 GHz 5.250 – 5.350 GHz 5.470 – 5.725 GHz 5.725 – 5.850 GHz2.4 GHz Frequency Band 2.412 – 2.484 GHz |
| Transmit Power | / |
| Receiver Sensitivity | -85 dBm (Broadcast: -80 dBm) |
| Latency | 0.06s (test data when 1080p60 signals are transmitted in a laboratory) |
| Range | 1,300ft (400m)(test data in an open, interference-free environment) |
| Bandwidth | 20 MHz (Broadcast: 40 MHz) |
