Hollyland Mars M1 Enhanced Wireless Transmitter, Receiver And Monitor, 3-in-1, SDI/HDMI Wireless Video Transmission System with 450ft (150m) Los Range and 0.08s Ultra-Low Latency, Solo Kit
Hollyland Mars M1 Enhanced Wireless Transmitter, Receiver And Monitor, 3-in-1, SDI/HDMI Wireless Video Transmission System with 450ft (150m) Los Range and 0.08s Ultra-Low Latency, Solo Kit
Original price was: ₹65,000.00.₹46,490.00Current price is: ₹46,490.00.
- Transmitter, Receiver, and Monitor All-in-One. Hollyland Mars M1 enhanced is a powerful and comprehensive monitor integrating a wireless video transmission solution, greatly reducing the weight of the camera. This monitor can be easily switched to TX or RX, and paired with Hollyland Mars 4K/400S Pro/II/300 Pro/M1/Enhanced for wireless transmission, greatly improved your convenience.
- Brand New HollyOS System：Powered by Hollyland’s groundbreaking operating system, the Mars M1 Enhanced offers a comprehensive suite of advanced monitoring tools, such as waveform, vectorscope, zebra pattern, aspect mark, anamorphic desqueeze, crosshatch, and more. Each of these tools provides you with complete control over your image, offering an opportunity to fine-tune every shot to your specific preferences.

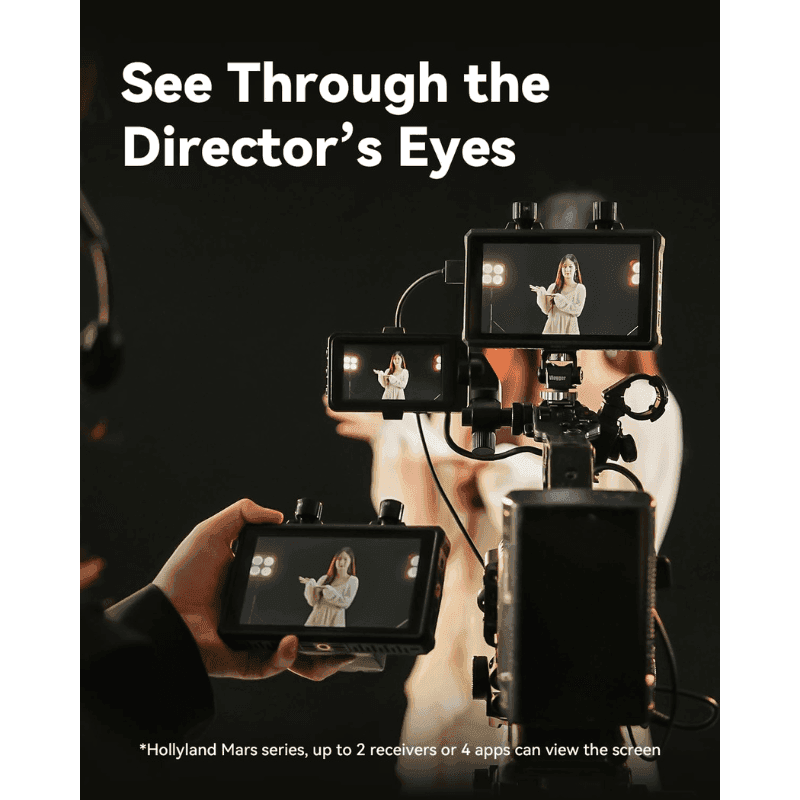

- Magical App — HollyView: As a single transmitter, it supports monitoring via APP on up to 4 mobile devices on set. Enhance your preview and monitoring capabilities with the magical HollyView app using its various image analysis functions such as image overlay, anamorphic desqueeze, and sharpness.
- 450ft (150m) LOS Range and 0.08s Ultra-Low Latency: The Mars M1 Enhanced is capable of an incredible LOS range of 450ft (150m) and ultra-low latency of 0.08s, allowing for increased flexibility in device deployment and ensuring real-time video monitoring with minimal delay. Note: The 450ft (150m) LOS range is based on interference-free laboratory measurements, and the 0.08s latency is measured when 1080p60 signals are transmitted.

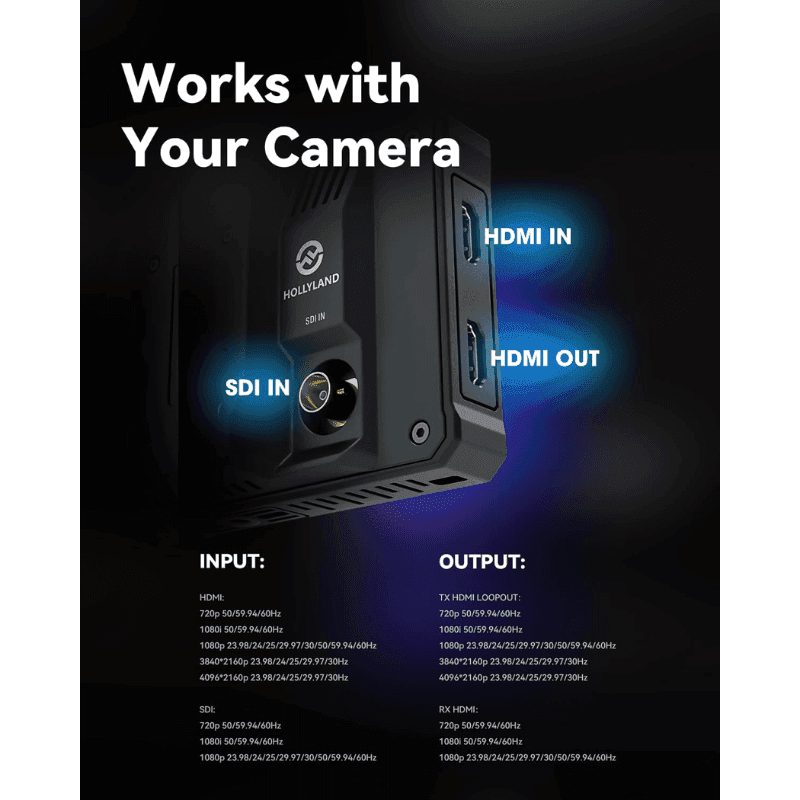

- HDMI & SDI Support: Featuring decimal frame rate support, the Mars M1 Enhanced also supports 4K/30fps HDMI input and loopout for expanded connectivity and compatibility. Its SDI input also provides extensive connectivity options to accommodate an ever-widening range of professional video production needs. Smart Channel Scan and Selection: The Mars M1 Enhanced features smart channel scan that helps determine which channels are occupied and which ones are selectable for ensuring a stable connection
-
TX, RX, and
Monitor – All in One -
1,000 Nits of
Brightness -
5.5” LCD
Touch Screen -
450ft (150m)
LOS Range -
0.08s
Low Latency -
Revolutionary
Operating System

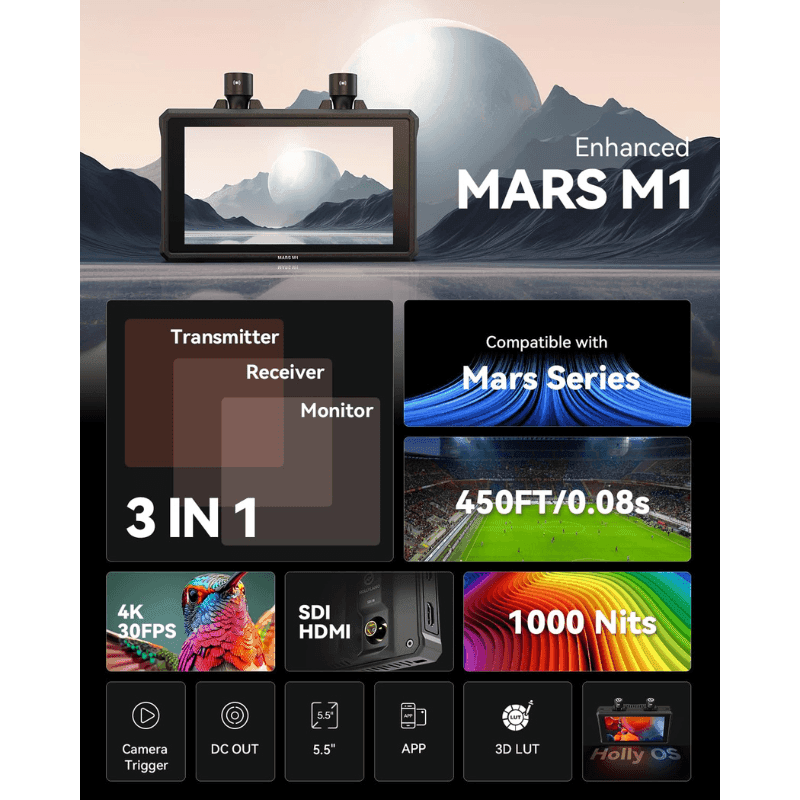

The Mars M1 Enhanced is a versatile wireless monitor that integrates transmitter, receiver, and monitoring functions into one solution. The 5.5″ touch screen with groundbreaking advantages such as accurate color calibration and Rec.709 color gamut, delivers a pleasant monitoring experience with professional image analysis functions. The device supports an impressive LOS range of up to 450ft (150m) and boasts a low latency of only 0.08 seconds, allowing for more flexibility in device deployment and ensuring seamless monitoring without noticeable lag.

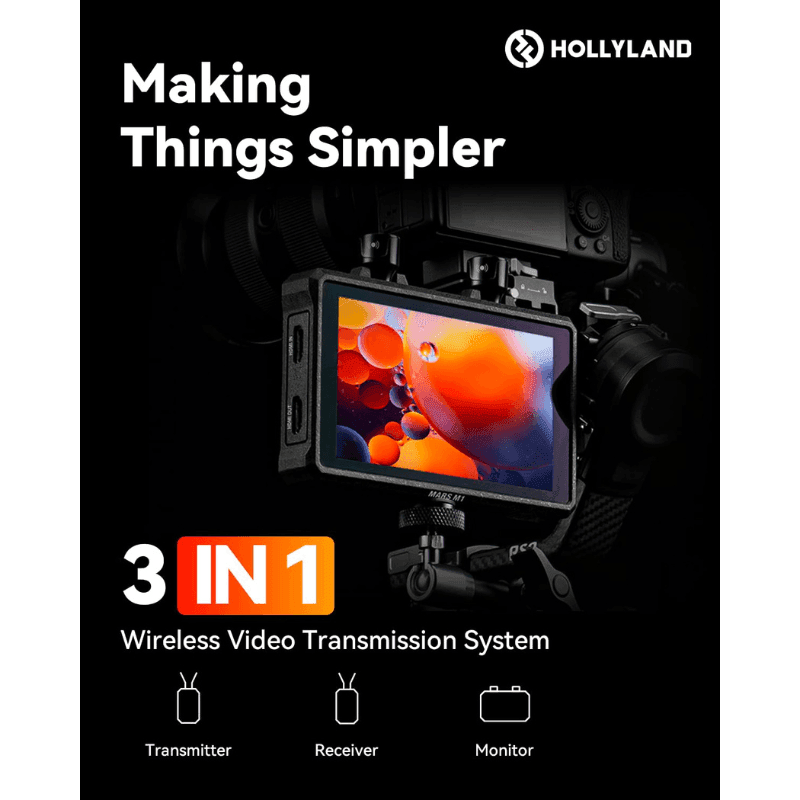

TX, RX, and Monitor
All in One
The Mars M1 Enhanced wireless transmission monitor is a powerful and comprehensive solution for all your monitoring needs. Because it is an
all-in-one device integrating the functionalities of a transmitter, receiver, and monitor into a single solution, you can effortlessly switch between the transmitter and receiver modes on its settings interface. Furthermore, a single Mars M1 Enhanced transmitter can seamlessly connect with up to two receivers or four mobile device apps.
Universal Compatibility
Our device is designed to easily work with the Mars Pro series and Mars 4K video transmission systems. This compatibility design reduces the need for multiple separate devices, making setup simpler and providing a more streamlined and efficient shooting experience.
Note: When the wireless mode is disabled, the Mars M1 Enhanced operates solely as a monitor. By disabling wireless functionality, power consumption is greatly reduced.

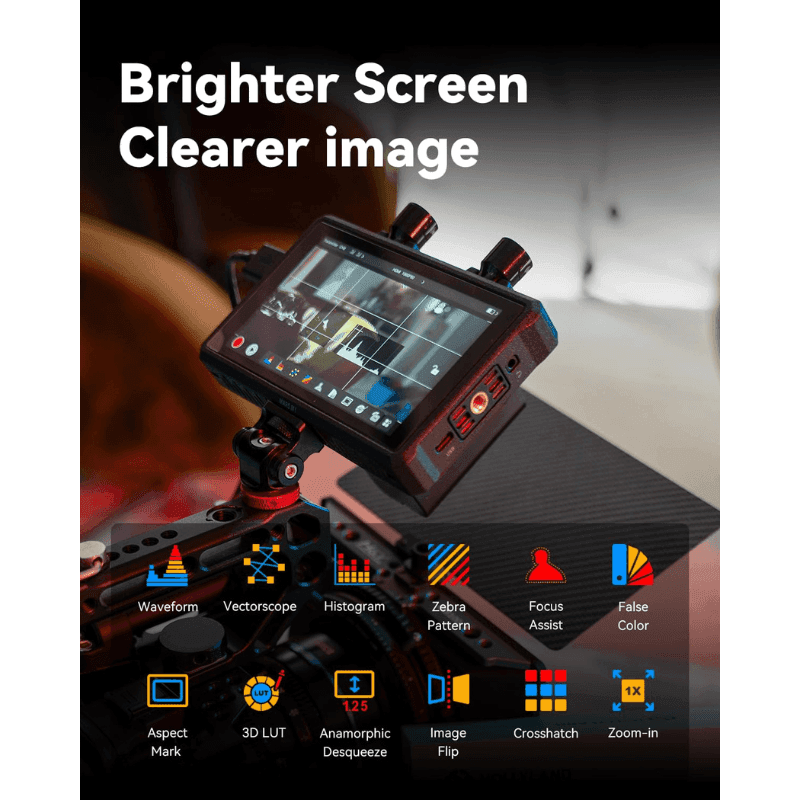

Responsive 5.5″
LCD Touch Screen
The Mars M1 Enhanced is a top-quality monitor with excellent color accuracy. Its highly responsive 5.5″ LCD touch screen and outstanding brightness of up to 1,000 nits make it perfect for outdoor use. The monitor undergoes a color calibration process during manufacturing, ensuring that every image is displayed with stunning resolution, vivid details, and unmatched color accuracy. Additionally, you can fine-tune the RGB gain using a simple reset option to achieve the perfect colors suitable for your needs.

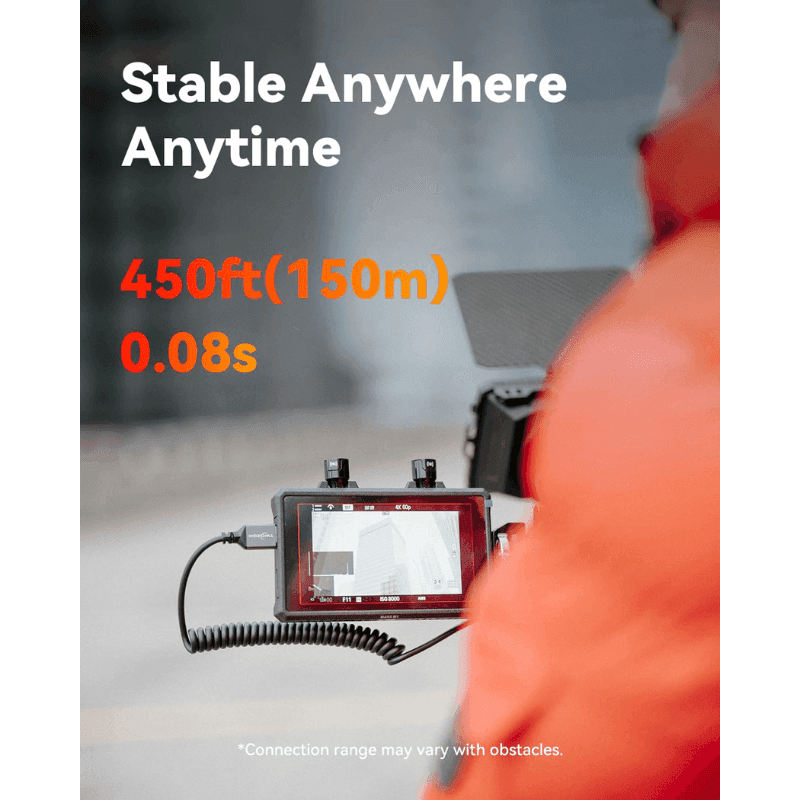

450ft (150m) LOS Range
0.08s Ultra-low Latency
The Mars M1 Enhanced provides an exceptional wireless video transmission range of 450ft (150m). With an ultra-low latency of 80ms, it virtually eliminates lag, guaranteeing stable and reliable wireless signal and delivering high-quality image monitoring overall.
| Weight | .40 kg |
|---|---|
| Dimensions | 15.2 × 9.6 × 4 cm |
| Brand | Hollyland |
| Distributor Name | Narayana Electronics |
Brand
Hollyland
Specifications
Transmitter
| Video Input Interface
|
HDMI 1.4b IN (Type-A female) 3G-SDI IN (BNC female)
|
| Video Output Interface | HDMI 1.4b LOOPOUT (Type-A female) |
| Antenna Interface | Two RP-SMA male interfaces |
| Power Input Interface | DC IN (2.0mm core socket) |
| Power Output Interface | DC OUT (2.0mm core socket) |
| Headphone Jack | 3.5mm |
| Upgrade Interface | USB-C (USB-2.0 OTG) |
| Screen Size | 5.5″ touchscreen |
| Screen Resolution | 1920×1080 pixels |
| Pixel Density | 403 PPI |
| Aspect Ratio | 16:9 |
| Screen Brightness | 1,000 nits |
| Contrast Ratio | 1000:1 |
| Power Input Voltage | DC IN: 7–16V 2.5A (nominal 12V) NP-F battery: 6.8V–8.4V |
| DC Output Voltage | 8.4V±5% |
| Power Consumption | <16W |
| Net Weight | Approx. 400g (14.1oz) with external antennas excluded |
| Dimensions | (L x W x H): 152mm x 96mm x 40mm (5.98″ x 3.78″ x 1.57″) with external antennas excluded |
| Input Video Resolution | HDMI IN: 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz 3840x2160p23.98/24/25/29.97/30 Hz 4096x2160p23.98/24/25/29.97/30 HzSDI IN: 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30 Hz 1080p50/59.94/60 Hz (3G-SDI level A) 1080p50/59.94/60 Hz (3G-SDI level B) |
| Output Video Resolution | HDMI LOOPOUT (HDMI IN): 720p50/59.94/60 Hz1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz 3840x2160p23.98/24/25/29.97/30 Hz 4096x2160p23.98/24/25/29.97/30 HzHDMI LOOPOUT (SDI IN): 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
Note: When the device (in receiver mode) is connected to the Mars 4K transmitter, if the HDMI input video resolution of the Mars 4K transmitter is 3840x2160p24/25/30 Hz, the HDMI output video resolution of the device is 1920x1080p24/25/30 Hz. |
| Display Latency | <0.05s (test data when 1080p60 signals are transmitted in a laboratory environment. The display latency varies by video resolution.) |
| Operating Frequency | 5.150–5.250GHz 5.250–5.350GHz 5.470–5.725GHz 5.725–5.850GHz |
| Codec Technology | H.264 |
| Bit Rate | 12Mbps |
| TX Power | ≤ 21+/-1.5dBm |
| Transmission Latency | Approx. 0.08s (test data when 1080p60 signals are transmitted in a laboratory environment) |
| LOS Range | Up to 450ft (150m) (test data in an unobstructed outdoor environment free of interference) |
| Bandwidth | 20MHz |
| Audio Format | Eight audio channels for the HDMI 1.4b |
| Operating Temperature | –10℃ to 60℃ (14° F to 140° F) |
| Storage Temperature | –40℃ to 60℃ (–40° F to 140° F) |
Note: The operating frequency and TX power vary by country and region. In some countries and regions, the 5.1GHz, 5.2GHz, and 5.8GHz frequency bands are prohibited, or the 5.1GHz and 5.2GHz frequency bands are only allowed for indoor use. Please refer to local laws and regulations for more information.
Receiver
| Video Input Interface
|
/ |
| Video Output Interface | HDMI 1.4b OUT (Type-A female) |
| Antenna Interface | Two RP-SMA male interfaces |
| Power Input Interface | DC IN (2.0mm core socket) |
| Power Output Interface | DC OUT (2.0mm core socket) |
| Headphone Jack | 3.5mm |
| Upgrade Interface | USB-C (USB-2.0 OTG) |
| Screen Size | 5.5″ touchscreen |
| Screen Resolution | 1920×1080 pixels |
| Pixel Density | 403 PPI |
| Aspect Ratio | 16:9 |
| Screen Brightness | 1,000 nits |
| Contrast Ratio | 1000:1 |
| Power Input Voltage | DC IN: 7–16V 2.5A (nominal 12V) NP-F battery: 6.8V–8.4V |
| DC Output Voltage | 8.4V±5% |
| Power Consumption | <13.6W |
| Net Weight | Approx. 400g (14.1oz) with external antennas excluded |
| Dimensions | (L x W x H): 152mm x 96mm x 40mm (5.98″ x 3.78″ x 1.57″) with external antennas excluded |
| Input Video Resolution | / |
| Output Video Resolution | HDMI OUT: 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz 1080p50/59.94/60 HzHDMI OUT: 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
Note: When the device (in receiver mode) is connected to the Mars 4K transmitter, if the HDMI input video resolution of the Mars 4K transmitter is 3840x2160p24/25/30 Hz, the HDMI output video resolution of the device is 1920x1080p24/25/30 Hz. |
| Display Latency | / |
| Operating Frequency | 5.150–5.250GHz 5.250–5.350GHz 5.470–5.725GHz 5.725–5.850GHz |
| Codec Technology | H.264 |
| Bit Rate | 12Mbps |
| TX Power | ≤ 21+/-1.5dBm |
| Transmission Latency | Approx. 0.08s (test data when 1080p60 signals are transmitted in a laboratory environment) |
| LOS Range | Up to 450ft (150m) (test data in an unobstructed outdoor environment free of interference) |
| Bandwidth | 20MHz |
| Audio Format | Eight audio channels for the HDMI 1.4b |
| Operating Temperature | –10℃ to 60℃ (14° F to 140° F) |
| Storage Temperature | –40℃ to 60℃ (–40° F to 140° F) |
